Fiche Antenne Type: GEODETIC 2 |
|
Référence ASHTECH : 700228.Dxxxxx à 700228.E |
|
|
|
|
|
Phase Center / ARP (NGS Test 98/06/02 ) [north] [ east] [ up ] | # in average -3.2 0.1 84.2 | L1 Offset (mm) -1.9 4.9 76.7 | L2 Offset (mm) 0.2 0.2 0.2 | L1 Rms (mm) 0.4 0.2 0.2 | L2 Rms (mm) |
|
Remarques : L-SHAPED NOTCHES Rayon extérieur : 0,1430 m Rayon aux trous : 0,1318 m |

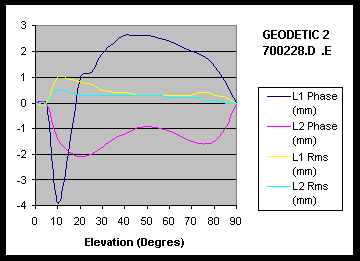

ASH 700228.D .E ASHTECH L1/L2, REV. B 'L-SHAPED NOTCHES' NGS ( 2) 97/10/27
[90] [85] [80] [75] [70] [65] [60] [55] [50] [45] [40] [35] [30] [25] [20] [15] [10] [ 5] [ 0]
.0 .8 1.4 1.8 2.0 2.2 2.4 2.5 2.6 2.6 2.6 2.3 1.9 1.2 .1 -1.6 -3.9 .0 .0 | L1 Phase (mm)
.0 -1.0 -1.5 -1.6 -1.5 -1.3 -1.1 -1.0 -.9 -1.0 -1.2 -1.4 -1.7 -2.0 -2.1 -1.9 -1.4 .0 .0 | L2 Phase (mm)
.0 .2 .3 .4 .3 .3 .3 .3 .3 .3 .4 .4 .5 .7 .8 .9 1.0 .0 .0 | L1 Rms (mm)
.0 .0 .1 .1 .2 .2 .2 .3 .3 .3 .3 .3 .3 .3 .3 .4 .5 .0 .0 | L2 Rms (mm)
Numéro de série des Antennes Parc INSU de ce type.
|
700228D1676 |
700228D1782 |
700228D2410 |
700228D2721 |
|
Informations complémentaires
National Geodetic Survey ( NGS ) Antenna Calibration : http://www.grdl.noaa.gov/GRD/GPS/Projects/ANTCAL
